At first, it may seem a bit academic to transform these quantities into different
framesofreference but, this is important for solving practical problems like
collisions. For instance, the two objects colliding will have their inertial
tensors defined in their own local coordinates, but when we work out the collision
response, the impulse will have to be calculated in some common coordinate system.
What we are doing here is observing the same particle or solid object from
different framesofreference. When the framesofreference are static (not
moving relative to each other). Then the Newtonian laws will apply, regardless
of where, or which direction, that we are looking at them from, provided that
we are consistent about measuring all quantities on the same frameofreference.
It may be that the transform is changing with time, for example, if we are
trying to solve a collision response, we might want to work in the frameofreference
of one of the objects that is colliding. This object may be moving, so its frameofreference
is moving with respect to the absolute coordinate system.
Do all the laws of physics apply when observing them from a moving frameofreference?
If the frameofreference is moving with a constant linear velocity, then the
Newtonian laws will apply just the same. A stationery object in one frameofreference
may appear to be moving in another, but provided that we are constant about
which frameofreference that we are working in, neither will contravene the
laws. (Einsteins laws may not apply, the speed of light is the same in each
frameofreference, relativity is not relative to the frameofreference  we
are interested in slow speed interactions so this is not an issue for us).
However, if the frameofreference has angular motion (even if its constant),
or if the frameofreference is accelerating, or if it has some irregular motion,
then the Newtonian laws will not apply in this frameofreference.
To take an example, imagine a solid object travailing in free space, it may
be spinning and have linear velocity as well. We may want to work in this objects
own coordinate system, because this frameofreference is rotating, the Newtonian
laws may not apply, for example an object which is stationary in the absolute
frameofreference will appear to be traveling in a spiral in this objects frame
of reference. An object with no forces acting on it should not be moving in
a spiral, so Newtonian laws do not apply in this frameofreference. However,
if we want to apply this inertia tensor, then we have to work in the local coordinate
system of the rotating object.

=
i_{xx}
i_{xy}
i_{xz}
i_{yx}
i_{yy}
i_{yz}
i_{zx}
i_{zy}
i_{zz}


So, we have to be careful. When we are calculating torques and forces, we often
want to work in its local coordinate system, but when we are calculating motion
we probably want to work in absolute coordinates.
Using matrix algebra to calculate transforms to other framesofreference
As described here,
a 4x4 matrix can be used to represent a rotation and a translation in 3 dimensions.
So we can use matrix algebra to translate from one frame of reference to another.
The transform will take a 3d vector representing a point in absolute coordinates
and convert it into a 3d vector representing a point in absolute coordinates:
a = [T]l
It is possible to have many layers of one framesofreference inside another.
For example, if we know the position of the moon relative to the earth [Tme]
and we know the position of the earth in the frameofreference of the sun [Tes],
then we could work out the position of a point on the moon in the frame of reference
of the sun [Tms].
It turns out that transforms can be concatenated by multiplying their corresponding
matrices. So [TMs] = [Tes]*[Tme].

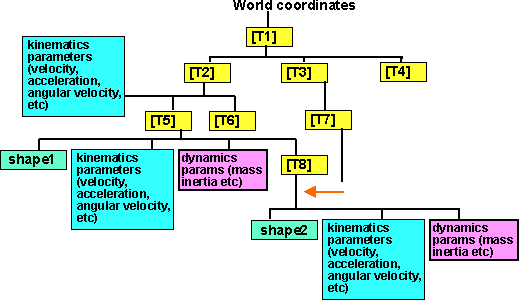

One way to represent this is to use a scene graph. We could use a scene graph
is a similar way to VRML. We could put dynamics information into the scene graph
in the same way that shape information is. In this page I would like to work
out the effect of transforming dynamics information in this way.
The transform allows us to plug in a coordinate in the local frameofreference
and get the coresponding coordinate in the absolute frameofreference.

=
r_{xx}
r_{xy}
r_{xz}
t_{x}
r_{yz}
r_{yy}
r_{yz}
t_{y}
r_{zx}
r_{zy}
r_{zz}
t_{z}
0
0
0
1


=
Plx * r_{xx} + Ply * r_{xy} + Plz * r_{xz}
+ t_{x}
Plx * r_{yz} + Ply * r_{yy} + Plz * r_{yz}
+ t_{y}
Plx * r_{zx} + Ply * r_{zy} + Plz * r_{zz}
+ t_{z}
1

For Solid objects, we need to specify both the location and the orientation
of the object to define its position. So for solid objects we can easily translate
its centreofmass (cofm) in this way, but how do we translate its orientation?
One way that occurred to me would be to, take a point an infinitesimal distance
away from from the cofm, translate that, and then see the orientation of this
point relative to the translated cofm.

=
r_{xx}
r_{xy}
r_{xz}
t_{x}
r_{yx}
r_{yy}
r_{yz}
t_{y}
r_{zx}
r_{zy}
r_{zz}
t_{z}
0
0
0
1

Plx + dPlx
Ply + dPly
Plz + dPlz
1

=
(Plx + dPlx) * r_{xx} + (Ply + dPly) * r_{xy} +
(Plz + dPlz) * r_{xz} + t_{x}
(Plx + dPlx) * r_{yz} + (Ply + dPly) * r_{yy} +
(Plz + dPlz) * r_{yz} + t_{y}
(Plx + dPlx) * r_{zx} + (Ply + dPly) * r_{zy} +
(Plz + dPlz) * r_{zz} + t_{z}
1

So the relative position is given by:

=



=
dPlx * r_{xx} + dPly * r_{xy} + dPlz * r_{xz}

dPlx * r_{yz} + dPly * r_{yy} + dPlz * r_{yz}
dPlx * r_{zx} + dPly * r_{zy} + dPlz * r_{zz}
1

=
r_{xx}
r_{xy}
r_{xz}
0
r_{yx}
r_{yy}
r_{yz}
0
r_{zx}
r_{zy}
r_{zz}
0
0
0
0
1


So to transform a movement, then we transform it by the rotational part of
the transform without the translational part of the matrix. Alternatively, if
we don't want to modify the transform matrix, we could just use 0 for the 4th
row of a relative movement vector, then the translational part will automatically
be ignored.
But if we measuring orientation with 3 angles, θx,
θy and θz.
How can we translate this with [T]? This may seem a bit stange as we are using
[T] to define the rotation of the frameofreference and θx,
θy and θz
to define the orientation in each frameofreference. The advantage of using
θx, θy
and θz would be
that this notation would fit in better with the physics equations.
Using 6 dimensional vectors to calculate transforms to other frames of reference
For Solid objects, we need to specify both the location and the orientation
of the object to define its position. It might be useful if we could represent
the transform of both location and orientation in one equation. To do this we
need a 6x6 matrix as the position has 6 degrees of freedom.
I am not sure if this will work for position because the normal rules of algebra
don't apply when combining rotations (see
rotations). Can anyone help me prove if this will work?

=
m_{00}
m_{01}
m_{02}
m_{03}
m_{04}
m_{05}
m_{10}
m_{11}
m_{12}
m_{13}
m_{14}
m_{15}
m_{20}
m_{21}
m_{22}
m_{23}
m_{24}
m_{25}
m_{30}
m_{31}
m_{32}
m_{33}
m_{34}
m_{35}
m_{40}
m_{41}
m_{42}
m_{43}
m_{44}
m_{45}
m_{50}
m_{51}
m_{52}
m_{53}
m_{54}
m_{55}


However I am sure it would work for velocities because infinitesimally small
rotations can be combined in the usual way.

=
m_{00}
m_{01}
m_{02}
m_{03}
m_{04}
m_{05}
m_{10}
m_{11}
m_{12}
m_{13}
m_{14}
m_{15}
m_{20}
m_{21}
m_{22}
m_{23}
m_{24}
m_{25}
m_{30}
m_{31}
m_{32}
m_{33}
m_{34}
m_{35}
m_{40}
m_{41}
m_{42}
m_{43}
m_{44}
m_{45}
m_{50}
m_{51}
m_{52}
m_{53}
m_{54}
m_{55}


This 6x6 matrix does not contain any extra information than the 4x4 transform
[T] (even the 4x4 transform has redundant information when we are considering
only a rotation and translation).
However, multiplication of a 6d vector by a 6x6 matrix, might be a lot easier
than multiplying 4x4 matrix by a 4x4 matrix (which we would have to do several
times if we are going to represent rotations by using matrices).
The advantage of this notation is that:
 The linear and angular quantities are dealt with is the same equation.
 The angular velocities and accelerations are defined in a way that is consistent
with the usual dynamics equations.
Issues:
 Not sure if we can use this to transform points.
 Not sure how we would concatinate transforms (transform within a transform).
Point ()
Every coordinate point in the local frame of reference can be transformed to
a coordinate in the absolute frame of reference a
= [T] l . This can be thought of as
the same point just measured in a different coordinate reference. A solid object
can be transformed in this way by seperately transforming each point that makes
it up.
This transform [T] is a 4x4 matrix and is capable of representing lots of tranforms
such as sheer, scaleing, reflection, etc. which are not valid operations for
a solid body, also it is very wasteful using a 4x4 matrix. Since we only want
to represent translations and rotations, it may be more efficient to represent
it in terms of a 3x3 rotation matrix [R] and a translation 0.
a = [R] l
+ 0
Where:
 a is the position in absolute coordinates.
 [R] is a 3x3 rotational matrix
 l is the position in local coordinates.
 0 is the linear translation.
But we still have the problem that [R] could be used to repesent invalid operations
for a solid object, we need to ensure that [R] is orthogonal. The problem is
that if a calculation involves lots of transforms then rounding errors could
distort [R], therefore we need to normalise (or should that be orthogonalise)
after tranforms are combined.
One way round this would be to work from the quaternion
[Q] to represent the rotation, as the quaternion is easier to normalise:
a =
1  2 * ( yy + zz )
2 * ( xy  zw )
2 * ( xz + yw )
2 * ( xy + zw )
1  2 * ( xx + zz )
2 * ( yz  xw )
2 * ( xz  yw )
2 * ( yz + xw )
1  2 * ( xx + yy )

l + 0
where:
 xx = qx* qx
 xy = qx * qy
 xz = qx * qz
 xw = qx * qw
 yy = qy * qy
 yz = qy * qz
 yw = qy * qw
 zz = qz * qz
 zw = qz * qw
 qx, qy, qz and qw are the values of the quaternion.
Linear Velocity()
As covered in kinematics the
absolute velocity of a point is the velocity in the local coordinates plus the
velocity of the frame of reference.
_{a} =
_{r} + _{i}
Angular Velocity ()
As covered in kinematics the
absolute angular velocity of a solid object is the angular velocity in the local
coordinates plus the angular velocity of the frame of reference.
_{a} =
_{r} + _{i}
Angular Momentum ()
The angular momentum about any point
is the angular momentum about the centre of mass, plus the angular momentum
associated with the motion of the centre of mass about .
Is this true for the most general case? Can anyone help me prove this?
In the local frameofreference then the angular momentum is:
l = l
x l
l = l
x m l
where:
 l = Angular momentum in local
frameofreference.
 l = distance
of particle from centre of rotation.
 l = linear momentum
in local frameofreference.
 m = mass of particle
 l =linear velocity
in local frameofreference.
In the absolute frameofreference then the angular momentum is:
a = a
x a
a = a
x m a
where:
 a = Angular momentum in absolute
frameofreference.
 a = distance
of particle from centre of rotation.
 a = linear momentum
in absolute frameofreference.
 m = mass of particle
 a =linear velocity
in absolute frameofreference.
Angular Acceleration ()
Can anyone help me derive the angular acceleration in absolute coordinates,
given the angular acceleration in local coordinates and the motion of the local
frameofreference?
Torque ()
In the local frameofreference (the inertial frame) then we have shown here
that:
l = [I] a
Where:
 l is the instantaneous
torque about PC as seen in the local coordinates
 [I] is a 3x3 matrix, known as the inertial tensor matrix.
 a Is the instantaneous
angular acceleration about PC
In the absolute frameofreference then the following equation applies, this
is known as eulers equation:
a = [I] a
+ wa x [I]wa
Where:
 a is the instantaneous
torque about PC
 [I] is a 3x3 matrix, known as the inertial tensor matrix.
 a Is the instantaneous
angular acceleration about PC
 wa Is the instantaneous angular velocity about PC
So when we move out of the inertial frame there is an apparent change in torque
of wa x [I]wa which is just due to the rotating viewpoint.
Can anyone help me to derive eulers equation so that I can understand what
assumptions that it makes?
Am I correct that [I] is the same in both of these equations? ie the inertial
tensor defined in the inertial frame.
Is it possible to solve the more general case, that is where an object has
a torque applied in the local frame, but the frame itself is rotating in a competely
different axis? In other words there is a hierarchy of rotating transoforms.
This would allow us to solve gyrosope type problems, such as when a man is holding
a spinning wheel at arms length, and is standing on a rotating platform, and
attempts to lift the spinning wheel.
Inertia [I]
I think the inertial tensor defined in the inertial frame is always used as
this has constant terms. Although I guess it would be possible to define an
inertial tensor such that:
a = [I(t)] a
provided that we were prepared to accept that the terms of [I(t)] will be a
function of time.
This site may have errors. Don't use for critical systems.
