Procedure

When I first did this I had a lot of problems and went down a lot of dead ends, for the full story see this page, luckily Tarper helped me and so I have arranged it in a more logical order here.

Step 1 - Preparation

Dont plug in yet! It helps to do some preperation first.

I am assuming that you are using a graphical user interface such as KDE and that you are logged in as an ordinary (non-root) user.

1.1) Start YaST -> Software Management and make sure that both irda and yast2-irda packages are installed, if not, install them.

irda3

1.2) close yast.

1.3) Open a console window ctrl-alt-f1 and login as root.

martin@suse:~> su root
Password:
suse:/home/martin # cd /etc/init.d
suse:/etc/init.d # dhcpcd stop
suse:/etc/init.d # insserv irda
suse:/etc/init.d #

If you already have an ethernet connection that uses DHCP it might help to switch if off while installing as follows:

1.4) cd /etc/init.d

1.5) dhcpcd stop

1.6) edit the ir configuration file: /etc/sysconfig/irda (requires root user login)

change IRDA_PORT="/dev/ttyS1"

to IRDA_PORT="irda0"

1.7) Before we can proceed with the YaST configuration we need to add a USB network device named usb-bus which provides configuration for irda(n). So on the command line type: insserv irda

linux:/etc/init.d # insserv irda

1.8) shutdown and re-boot the system for this to take effect.

1.9) in YaST -> System -> System services (Runlevel) enable irda

irda

Step 2 - Plug in

2.1) Plug in the Belkin F5U235qea to the USB port on the Linux system and wait. Without doing anything else it should automatically detected the new hardware and bring up this dialog box:

plugin

irda

2.2) Click on yes (you may be asked to enter your root password) this will then bring up the following YaST screen:

irda2

2.3) Click on 'add'

irda

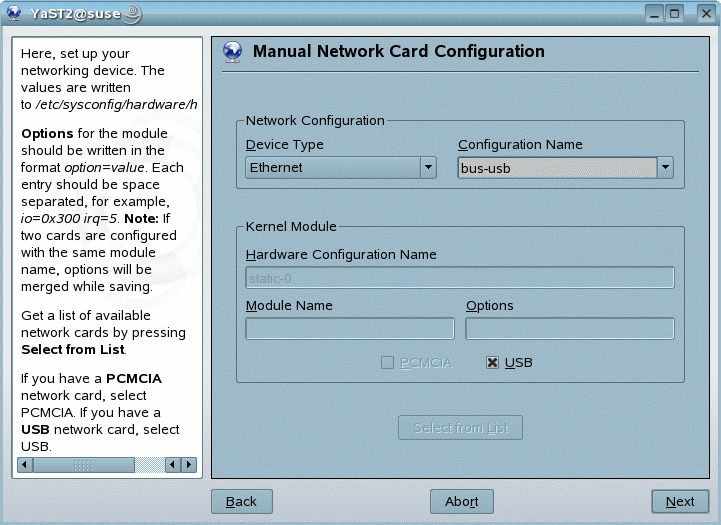

2.4) Set Device Type to USB

Change configuration Name to bus-usb

and select USB box.

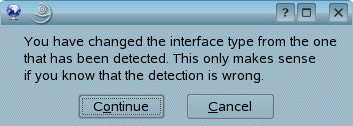

I then clicked on next:

irda

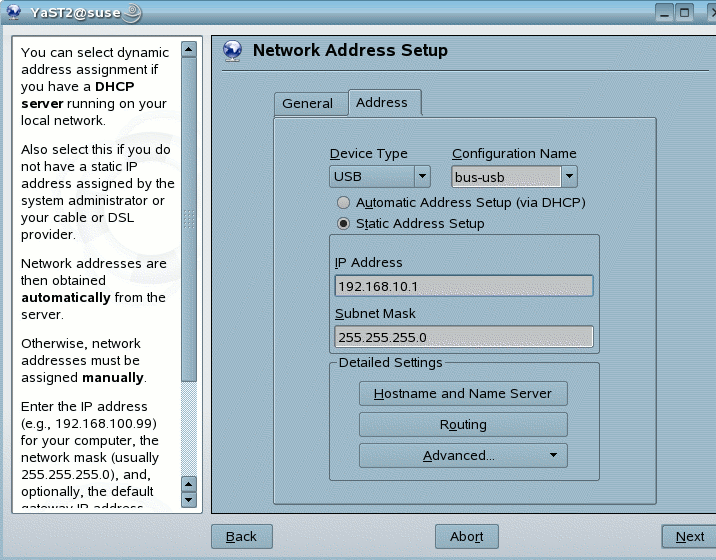

2.5) Select the static IP address and set it to 192.168.10.1

click on Next

irda

irda

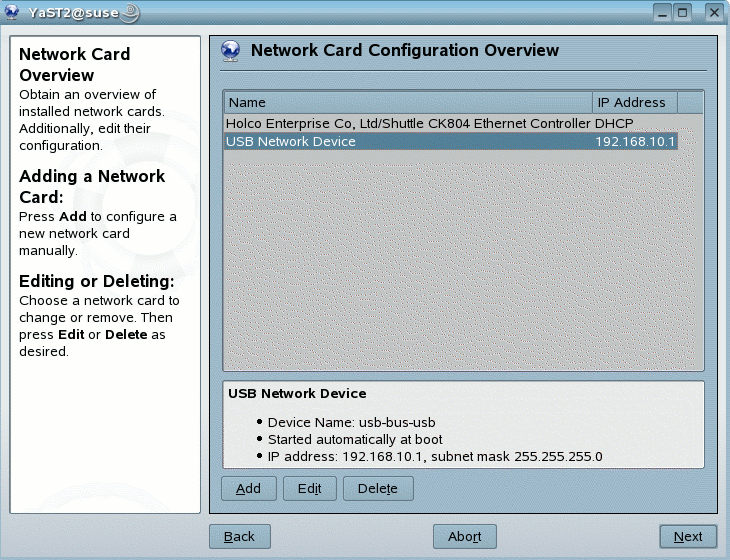

2.6) Click on next again:

irda

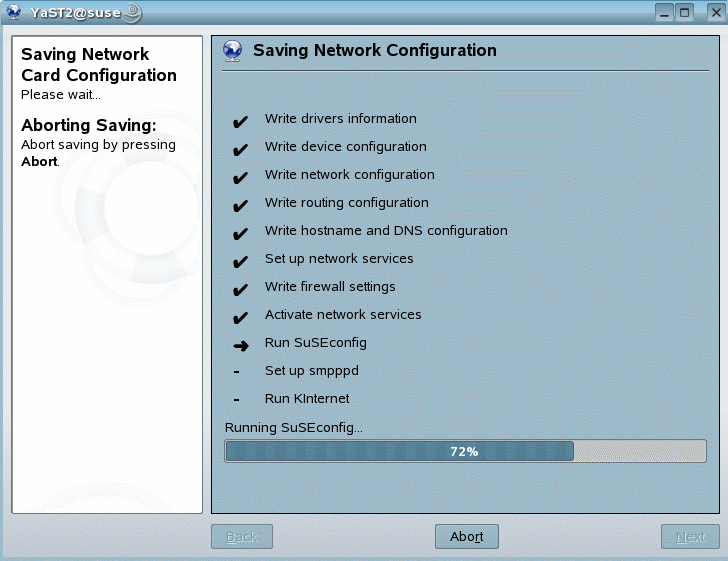

This then wrote the configuration and automatically shut down the dialog.

(if you have gkrellm running a irda0 window will automatically appear showing the polls going out)

2.7) Another way to check its working, on the console, you can type ifconfig:

linux:~ # ifconfig

2.8) if you stopped DHCP earlier you can start it again now.

linux:~ # dhcpcd start

martin@suse:~> su root
Password:
suse:/home/martin # ifconfig
eth0 Link encap:Ethernet HWaddr 00:30:1B:B8:69:2C
inet addr:192.168.0.3 Bcast:192.168.0.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:68 errors:0 dropped:0 overruns:0 frame:0
TX packets:140 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:10175 (9.9 Kb) TX bytes:16481 (16.0 Kb)
Interrupt:217 Base address:0x4000

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:59 errors:0 dropped:0 overruns:0 frame:0
TX packets:59 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:3826 (3.7 Kb) TX bytes:3826 (3.7 Kb)

suse:/home/martin # dhcpcd start
suse:/home/martin #

Security access to port

By default only root users can access this port, we need to give other users security access as follows:

linux:~ # chmod 666 /dev/ircomm0

To avoid the need to do this every time you log in you can either:

add each user to group 'uucp' using YaST.
(gives these users read and write permissions to every serial port)

Yast ->
Security and users ->
User management ->
Select user ->
Edit ->
Details ->
Groups ->
Select 'uucp'

yast security

alternativly edit file /etc/udev/rules.d/50-udev-default.rules
find line containing 'ircomm'.

It looks like this:
KERNEL=="ircomm*",NAME="%k", GROUP="uucp"

Append ', MODE="666"' to the line:
KERNEL=="ircomm*", NAME="%k", GROUP="uucp", MODE="666"

After next boot your /dev/ircomm0's mode is 666.

Thanks to orankelium for explaining how to do this.

Connecting to the Palm

This is explained here.
