Technology - Shuttle PC - DRAM Configuration

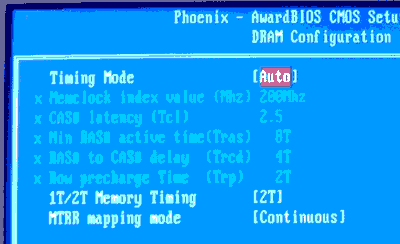

The picture is not very clear so here are the values:

Timing mode [Auto]
Memclock index value (Mhz) 200Mhz
CAS# latency (tcl) 2.5
Min RAS# active time (Tras) 8T
RAS# to CAS# delay (Trcd) 4T
Row precharge Time (Trp) 2T
1T/2T Memory Timing [2T]
MTRR mapping mode [Continuous]

I set the Row precharge Time (Trp) to 4T

CAS (Column Address Strobe) Latency RAS-to-CAS Delay (Row Address Strobe) RAS Precharge Act-to-Precharge Delay.



The BIOS has automatically detected these values, are these correct? The memory installed is:

Geil® Value 1Gb PC3200 Dual Chan DDR Kit (2x512MB) (Cas 2.5 6-3-3)
