PC built in 2012 - Setting Bios/UEFI

When first switched on, the screen was blank for a long time, then this appeared.

Its a relief that, at least the basic functionality appears to be there.

bios
  bios

Memory Timing

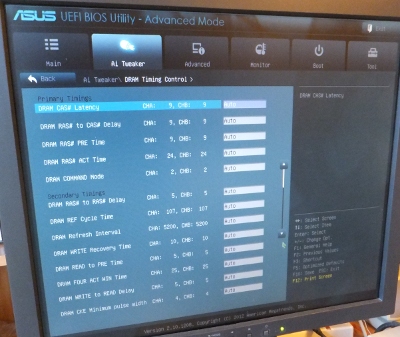

In the top screen above the memory speed seems to have been detected as 1333 Mhz although the spec for the memory cards is 1600 Mhz. (For information about the memory that I have used see this page)

The primary timings appear to have been detected correctly, the CAS Latency is given in the spec as 9-9-9-24 which agrees with the 'Advanced mode / AI tweeker' screen above.
