This interface is designed where possible to comply with a number
of recommendations, including the following,
CCITT X.25 International Telegraph and Telephone Consultative Committee, Geneva.
NET2 CEPT Bern, published by BSI in the UK.
X.25 is a CCITT recommendation which describes an interface to
be provided by a packet switching network. This document is not
intended as an X.25 tutorial, but as a guide to the options which
are used on the UK network.
In the first part of this guide you will find an overview of the
UK service, information
about installation and configuring your equipment, facilities
and options available. The remainder of the document contains
more detailed information
about the UK X.25 implementation.
When you Order an X.25 line, a dataline is provided into your
premises, the Modem is normally supplied by BT. You will need
to connect this to a computer or terminal which supports the X.25
protocol and is compatible with UK. Most major computer manufacturers
supply hardware and software for this purpose.

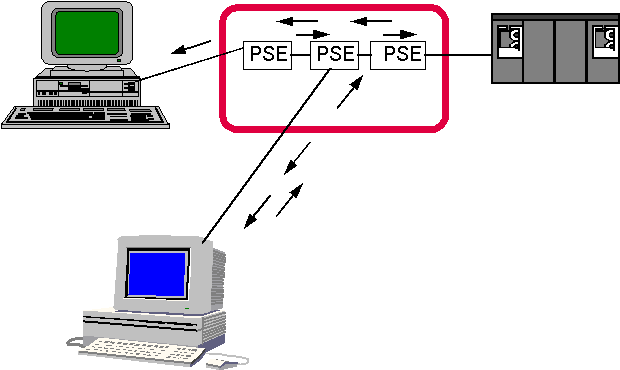

X.25 allows many simultaneous calls (known as virtual circuits)
to be connected over one physical circuit.
X.25 lines can make calls to, or receive calls from,
* other X.25 lines.
* X.25 dial lines (X.32).
* Asynchronous terminals - using public or private PADs (Packet assembler-Disassembler).
* Other protocols, such as SNA when using compatible software
of using the appropriate translation gateway.
¬es& = yTemporary notes for reviewers
This diagram was drawn at the height of Public Network expansion, I need
to check wich sites still exist.
I also need to check which are UK(b) sites.
Your equipment may have to be configured before it will work with
UK, refer to your equipment suppliers instructions for information
about how to do this. You may find the following values useful
in order to get started:
Note: some suppliers may refer to the service as 'Public Network'.
Interface: your equipment should be configured as a DTE.
Use a V.24, V.35 or V.11 interface
depending on the type of circuit you have ordered.
Level 2: Link initiation - UK(a) = 'DTE initiated SABM start'
UK(b) = 'DCE initiated'
Timer T1: 3 seconds
Timer T2: 0.5 second
Timer T3: 60 seconds
Timer T4: 12 seconds
N1 = 4320
N2 = 20
Window size = K = 7
Level 3: NUA - This will be supplied by UK when you order your
circuit.
PVC or SVC - use SVC
Logical channels: Start at the following values:
Type of circuit Logical Channel Group Number (LCGN)
bothway 4
incoming 2
outgoing 6
Some manufacturers require the value to be entered as
a number as follows: LCN + LCGN*256
for example to enter 10 bothway channels use
1024 to 1033
Facility options should match the values your requested
on the UK order form.
UK is connected to a large number of packet switching networks
around the world. The call is setup in the usual way by calling
the Address (NUA) of the line you wish to access. The first 4
digits of the address is known as the DNIC, this is used to specify
the country or network you wish to call. In general UK uses the
following DNICs.
2342 for UK UK(a)
2343 for UK UK(b)
2344 for UK in Europe
3106 for UK in USA and rest of world.
Other networks can be called by using their DNICs.
The facilities that can be specified on a call request will depend
on the type of gateway:
Countries on the UKb Global Network
End-to-end service within UK gives maximum facilities for UK(b) users.
Austria | France | New Zealand | Switzerland |
Belgium | Germany | Norway | UK |
Canada | Italy | Spain | USA |
Denmark | Japan | Sweden | |
Finland | Netherlands |
Countries accessible via the Enhanced Gateway
Provides many of the facilities as above, but is not end-to-end managed by British Telecom.
Antigua | Bermuda | Guatemala | Peru | Trinidad & Tobago |
Antilles | Cayman Islands | Honduras | Philippines | Turks & Caicos |
Argentina | Chile | Hong Kong | Puerto Rico | US Virgin Islands |
Austria | Columbia | Hungary | Saudi Arabia | Uruguay |
Bahamas | Egypt | Lebanon | South Korea | |
Bahrain | Greece | N Marianas | Taiwan | |
Barbados | Guam | Panama | Tortola |
Countries accessible via the Standard Gateway
This service is similar to the former International Public Network and provides a basic X.25 service to over 140 networks in over 100 countries worldwide.
Brazil | Iceland | Singapore |
Bulgaria | Ivory Coast | South Africa |
China | Jamaica | Thailand |
Costa Rica | Kuwait | Togo |
Cuba | Liechtenstein | Tunisia |
Cyprus | Luxembourg | Turkey |
Djibouti | Malaysia | United Arab Emirates |
Dominican Republic | Macau | USSR |
Faroe Island | Mauritius | Vanuatu |
French Antiles | Mexico | Venezuela |
French Guyana | Namibia | Yugoslavia |
French West Indies | New Caledonia | Zimbabwe |
Gabon | Niger | |
Gambia | Papua N.G. | |
Greenland | Polynesia | |
Ireland | Portugual | |
India | Qatar | |
Indonesia | Reunion Island | |
Israel | San Marino | |
Iraq | Senigal |
Charges are made up of the following parts:
* Dataline rental.
* Call charges - Data.
- Connect time.
See **** for details of the charges.
¬es& = yTemporary notes for reviewers
The usages charges are calculated differently for the two networks:
UK(a) - The user is charged per segment, which is a 64 byte unit,
it costs the same to send a segment whether it contains one byte
or 64 bytes.
UK(b) - The user is charged per byte, regardless of how efficiently
bytes are packed into segments.
The charges will be set to give the same average charge for the
two networks, however users who pack their data more efficiently
into segments will be worse off when they move from UK(a) to
UK(b), users who send lots of short packets will be better off.
Calls from UK(a) to UK(b) will be charged at the UK(a) rate.
Calls from UK(b) to UK(a) will be charged at the UK(b) rate.
New international charge rates apply to UK(b) users.
Packet switching networks are inherently secure, because of the
error correction and because, once the call is in the network
it has the choice of many internode trunk lines depending on availability
and traffic loading of the various available routes.
Like the Telephone network UK can be 'open' in that calls can
be received from any user on the network. Of course the recipient
of the call can choose to accept or clear the call, they may choose
to prompt for a password and/or validate the call on the basis
of the calling address.
This is the most flexible in that the user has complete control
over passwords etc. If you have even more stringent security requirements
then there are many options listed in this document, for example:
See the relevant section in this document for details of these
and other facilities available.
BASIC SERVICE | X.2 (1984) | UK(a) | UK(b) | interworking | ||||
REF | CLASS | now | now | R5a | R5b | R6 | ||
Permanent Virtual Circuit (PVC) | T | |||||||
Switched Virtual Circuit (SVC) |
X.2 LEVEL 2 PER USER SUBSCRIPTION | X.2 (1984) | UK(a) | UK(b) | interworking | ||||
OPTIONS | REF | CLASS | now | now | R5a | R5b | R6 | |
Multilink procedures | 1.21 | A | x | x | x | x | x | |
Extended frame sequence numbering | 1.30 | A | T | p | p | p |
X.2 LEVEL 3 PER USER SUBSCRIPTION | X.2 (1984) | UK(a) | UK(b) | interworking | |||
OPTIONS | REF CLASS | now | now | R5a | R5b | R6 | |
Extended packet sequence numbering.. | 1.1 A | . | |||||
Non-standard default window sizes... | 1.2 A | T | |||||
Non-standard default packet sizes... | 1.3 A | T | |||||
Default throughput class assignment. | 1.4 A | p | |||||
Flow control parameter negotiation.. | 1.5 E | ||||||
Throughput class negotiation........ | 1.6 E | p | |||||
Packet Retransmission............... | 1.7 A | . | . | . | . | ||
Incoming calls barred | 1.8 E | T | p | ||||
Outgoing calls barred | 1.9 E | T | p | ||||
One-way logical channel outgoing | 1.10 E | ||||||
One-way logical channel incoming | 1.11 E | ||||||
Closed user group (CUG) | 1.12 E | ||||||
CUG with outgoing access | 1.13 A | p | p | ||||
CUG with incoming access | 1.14 A | p | p | ||||
Incoming calls barred within CUG | 1.15 A | . | |||||
Outgoing calls barred within CUG | 1.16 A | . |
X.2 LEVEL 3 PER USER SUBSCRIPTION | X.2 (1984) | UK(a) | UK(b) | interworking | ||||
OPTIONS | REF CLASS | now | now | R5a | R5b | R6 | ||
Bilateral closed user group......... | 1.17 A | . | . | . | . | . | ||
Bilateral CUG with outgoing access.. | 1.18 A | . | . | . | . | . | ||
Reverse charge acceptance | 1.19 A | . | . | . | . | |||
Fast select acceptance | 1.20 E | |||||||
Charging information | 1.22 A | p | . | . | . | . | ||
Direct call | 1.23 FS | . | . | . | . | . | ||
Hunt group (multiline) | 1.24 A | p | ||||||
with adr replacement | . | . | . | p | ||||
On-line facility registration | 1.25 A | . | . | |||||
D-bit modification | 1.26 A | T | . | . | . | . | ||
Local charge prevention | 1.27 A | . | ||||||
Call redirection on out of order | 1.28 A | p | ||||||
on busy | ||||||||
systematic | . | . | . | p | ||||
Network user identification | 1.29 A | . | ||||||
RPOA selection | 1.31 A | . |
-------------------------------------------------------------------------------------------+
X.2 LEVEL 3 PER CALL FACILITY | X.2 (1984) | UK(a) | UK(b) | interworking | |||
OPTIONS | REF CLASS | now | now | R5a | R5b | R6 | |
Closed user group selection | 2.1 E | ||||||
Bilateral closed user group select | 2.2 A | . | . | . | . | . | |
Reverse charging | 2.3 A | . | . | ||||
RPOA selection | 2.4 A | . | |||||
Flow control parameter negotiation | 2.5 E | ||||||
Fast select | 2.6 E | ||||||
Throughput class negotiation | 2.7 E | . | |||||
Abbreviated address calling | 2.8 FS | . | p | p | |||
Charging information | 2.9 A | p | . | . | . | . | |
Transit delay selection and indicati | 2.10 E | . | p | p | p | ||
Call redirection notification | 2.11 A | . | . | . | |||
Called line address modified | |||||||
notification | 2.12 A | . | . | . | |||
Network user identification (NUI) | 2.13 A | . | |||||
Closed user group with outgoing | |||||||
access selection | 2.14 A | . | |||||
DTE facilities | . | ||||||
DTE facility marker | . | ||||||
calling address extension | . | ||||||
called address extension........ | . | ||||||
minimum throughput class........ | . | ||||||
end to end transit delay | . | ||||||
expedited data negotiation. | . |
PROCEDURE CHANGES AT CCITT 84 | X.2 (1984) | UK(a) | UK(b) | interworking | |||
OPTIONS | REF CLASS | now | now | R5a | R5b | R6 | |
Registration Packet type | . | ||||||
Diagnostic Packet | . | ||||||
Packet sizes 2048 and 4096 | . | ||||||
Increase in maximum facility field | . | ||||||
Interrupt packet maximum data size | |||||||
32 octets | . | . | |||||
non-zero DTE causes | . | ||||||
new network clear causes | . | . | . | . | . | ||
CUG extensions | . | . | . | . | . | ||
Fast select extensions | . | . | . | . |
KEY
= Supported, see details under relevant section.
| = Part Indicates that an explanatory note is required, due
P
to significant difference between the CCITT recommendation and
the software implementation. See relevant section.
T = Technically the equipment could support this but it is not
being marketed due to difficulty in supporting it.
FS Indicates that the facility is referred to in the recommendation,
but is for further study.
A Additional CCITT facility
E Essential CCITT facility
R5a = Requires release 5 XCOM at both ends of the call.
Expected date on network 1Q 1991
This is a new release of software in the Packet switching nodes which provides new facilities such as:
* On-line registration.
* Extended Interrupt Packet.
* Diagnostic Packet.
R5b = Requires LOGII and release 5 XCOM at both ends of the call.
Expected date on network 3Q 1991
This is a new internal protocol in the network between the switching nodes and the network supervisor , which provides new facilities such as:
* enhanced routing.
* more powerful user validation.
* CRN.
* CLAMN.
R6 = Requires release 6 XCOM at both ends of the call.
Expected date on network 1Q 1992
This is a new release of software in the Packet switching nodes which provides new facilities such as:
* D-bit support.
* Transit Delay Selection and Indication.
¬es& = y
Temporary notes for reviewers
I know marketing don't want to mention software releases, and
I can see why, but what should I do? If we only claim support
of the options currently available then the new service will not
look very impressive.
Also Marketing will have to decide which facilities we are going
to offer, some facilities will incur extra engineering and administration
costs, some facilities should be discouraged for technical reasons.
* UKb uses an internal protocol which is very different than X.25, therefore a protocol conversion has to be done at each end of the call. (UKa is very similar to X.25 all through the network).
* Each software slot runs its own copy of its software, using a lot of memory.
* Code is written in UKb Engine Assembly language then translated into 68000 code.
* Centralised routing could delay call setups.
Other QOS issues:
* The Turbo has much less redundancy than UKa (only the GP cards and power supply are backed up, not line cards or backplane), although less complexity could improve the reliability.
* Centralised routing, effects call setup times and network traffic.
